Product Introduction

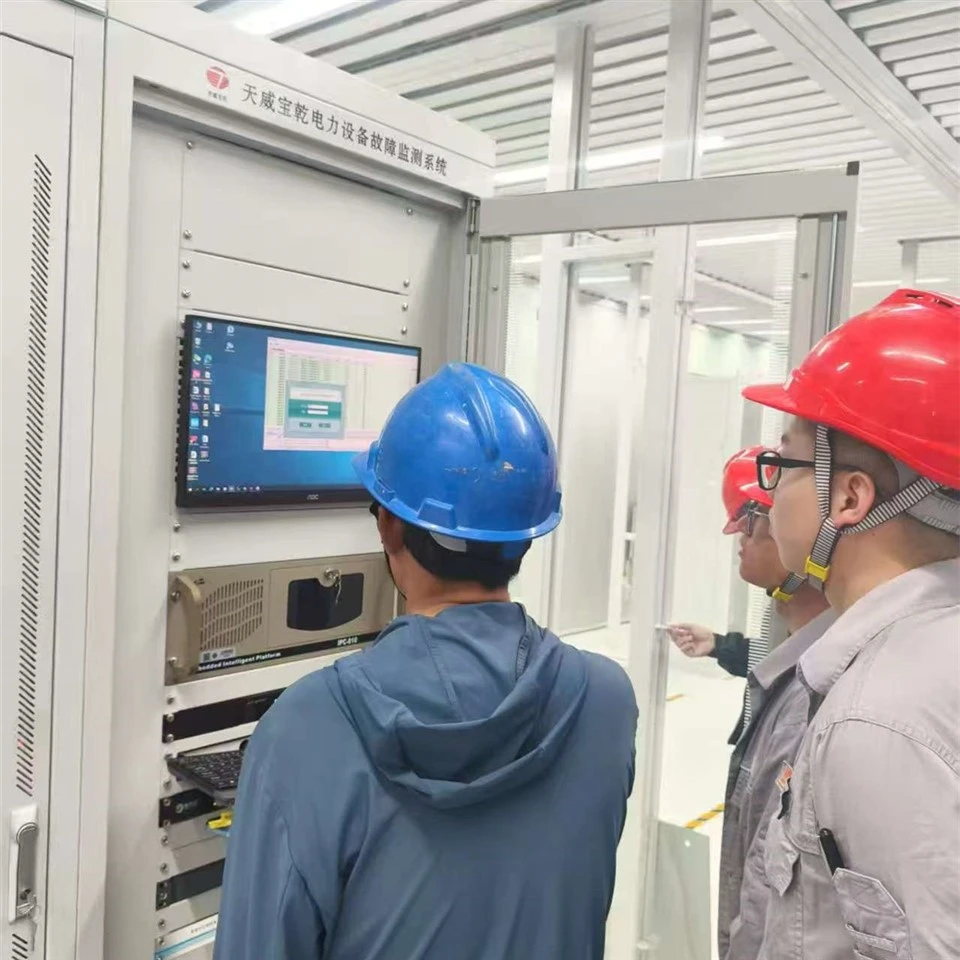

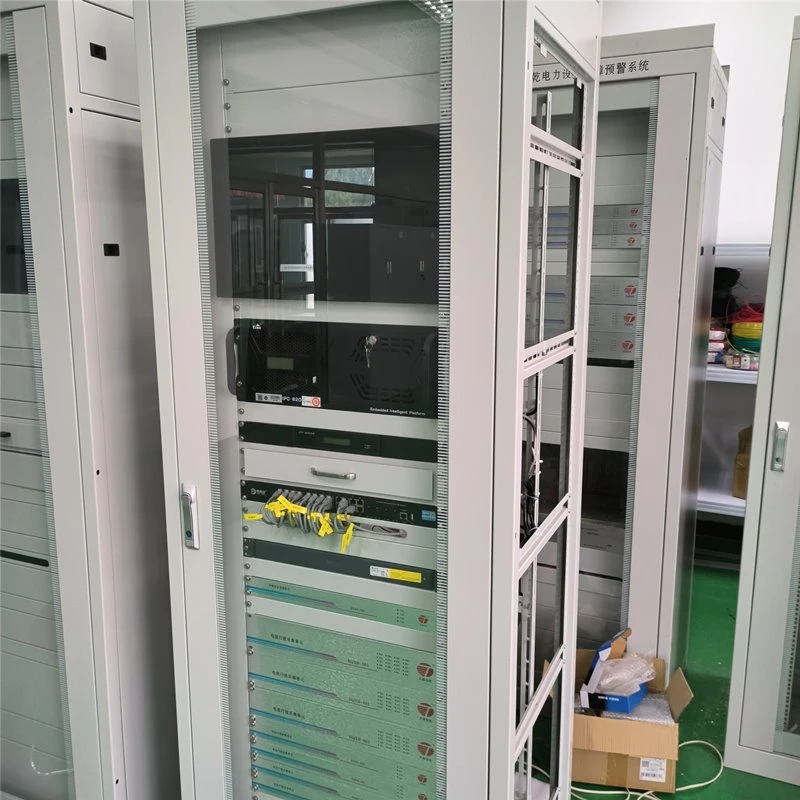

The Cable Fault Location System performs real-time online monitoring of power cable operational status by capturing both transient traveling waves and steady-state components during cable operation. Utilizing the traveling wave positioning principle, the system visually displays fault waveforms to achieve accurate fault location. Through advanced analysis of fault information, the Cable Fault Location System can predict cable conditions, evaluate insulation status, and provide early warnings for potential permanent faults. It immediately triggers alarm signals for faulty cables and delivers comprehensive diagnostic information, helping to prevent insulation defects from escalating into short circuits, fires, or explosions. The Cable Fault Location System consists of an intelligent management unit, voltage and current traveling wave collection units, current wave sensors, and background software. The platform supports various interactive functions including system overview, fault record queries, waveform analysis, and precise location assessment, effectively reducing unplanned outages and shortening cable troubleshooting cycles.
Equipment Characteristics
Fault Ranging
Pinpoints fault locations using voltage/ current traveling wave technology with ±2.125m accuracy
Fault Line Selection
Identifies faulty cable circuits through real-time insulation monitoring
Cloud Service
Provides permanent cloud storage with web-based remote access
Local Monitoring
Displays system topology with audible/ visual alarms for faults
Electronic Duty
Enables unmanned operation with mobile alerts via WeChat Mini Program
Remote Support
Delivers 24/7 technical assistance and remote system upgrades
Data Management
Stores real-time data with full historical query capability
Our Factory
Baoding Tianwei Baoqian Electric Power Equipment Co., Ltd., established in 2004 and based in the Baoding National High-tech Industrial Development Zone, is a professional power equipment manufacturer with a registered capital of 101 million RMB. The company offers a comprehensive product portfolio that spans primary equipment-including dry-type, oil-immersed, and amorphous alloy transformers, compact substations, as well as oil conservators and switchgear-and extends to secondary systems such as cable fault early warning systems, partial discharge online monitoring systems, and live detection services for substations. Guided by the principle of "Quality First, Customer Focused," the company maintains a robust quality assurance and after-sales service system, continuously innovating and upgrading products in response to market needs. With a vision to become a global smart power solutions provider, Tianwei Baoqian is dedicated to delivering intelligent, reliable power equipment and professional technical services to customers worldwide.
