Product Description

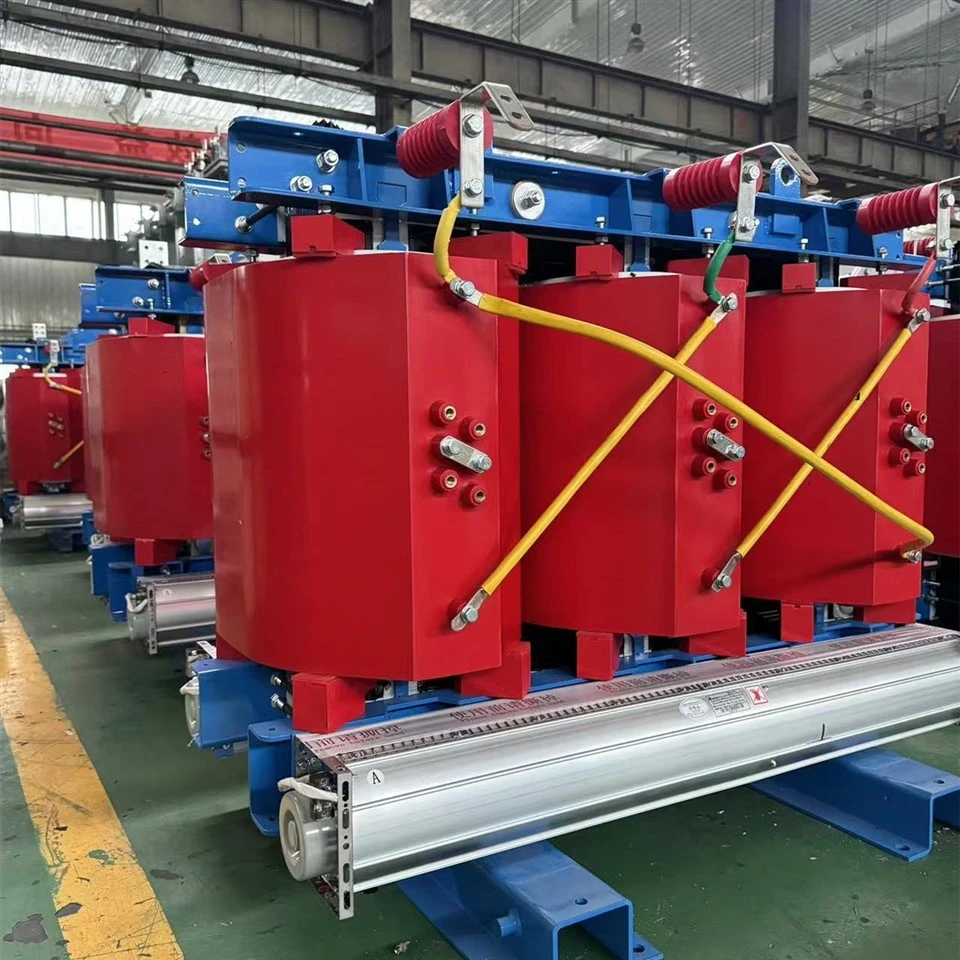

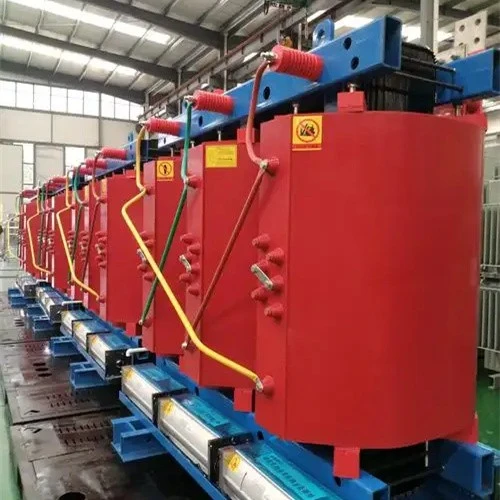

Dry Type Power Transformer is a vital asset for modern power distribution, engineered to transform voltage levels without the use of flammable insulating oil. Utilizing advanced solid insulation and natural or forced air cooling (AN/AF), this transformer is inherently safe and environmentally friendly. Its core and windings are constructed with Class H heat-resistant materials and a robust mechanical design, ensuring high reliability and a long operational life. As a high-efficiency dry type power transformer, it complies with stringent international standards, including GB/T 10228-1997.
Product Parameters
|
Category |
Specification |
|
Typical Model |
SCB10-630KVA |
|
Rated Capacity |
630 kVA |
|
Voltage Combination |
High Voltage: 10.5 kV, Low Voltage: 0.4 kV |
|
Energy Efficiency |
≥98% |
|
No-load Loss |
20% lower than GB/T10228-1997 Group I |
|
Load Loss |
15% lower than GB/T10228-1997 |
|
Noise Level |
15% lower than JB/T10088-1999 |
|
Partial Discharge |
≤5 pC (10kV level) |
|
Insulation Class |
Class H |
|
Enclosure Material |
Stainless Steel, Cold Plate, Aluminum Alloy |
|
Standards |
GB/T10228-1997, GB6450-1986 |
Product Advantages
Enhanced Safety & Eco-Friendly
The absence of oil eliminates the risks of fire, explosion, and soil contamination, making it a clean and safe choice for sensitive environments.
01
High Efficiency & Cost Saving
Features significantly reduced no-load and load losses (20% and 15% below standard, respectively), leading to substantial energy savings and lower operating costs.
02
Low Maintenance & High Reliability
The "dry" design requires no oil monitoring or filtration, resulting in minimal maintenance needs and reduced lifetime costs.
03
Robust Performance
Exhibits excellent short-circuit strength, resistance to moisture and dust, and extremely low partial discharge levels (<10 pC), ensuring stable performance in tough conditions.
04
Flexible Installation
Its compact and lightweight design allows for installation directly at the load center (e.g., in building basements), reducing cable costs and transmission losses.
05
Our Factory
Our Certificate
Main Applications
This versatile dry type power transformer is the preferred solution for a wide range of indoor and demanding applications. It is ideally deployed in high-rise buildings, commercial complexes, airports, metro stations, industrial plants, and hospitals-any location where fire safety, space efficiency, and operational reliability are of utmost importance.
Material
Class H heat-resistant insulation materials with moisture-proof structural design; enclosures available in stainless steel, cold plate, or aluminum alloy; all materials designed for easy separation and recycling.
