Product Description

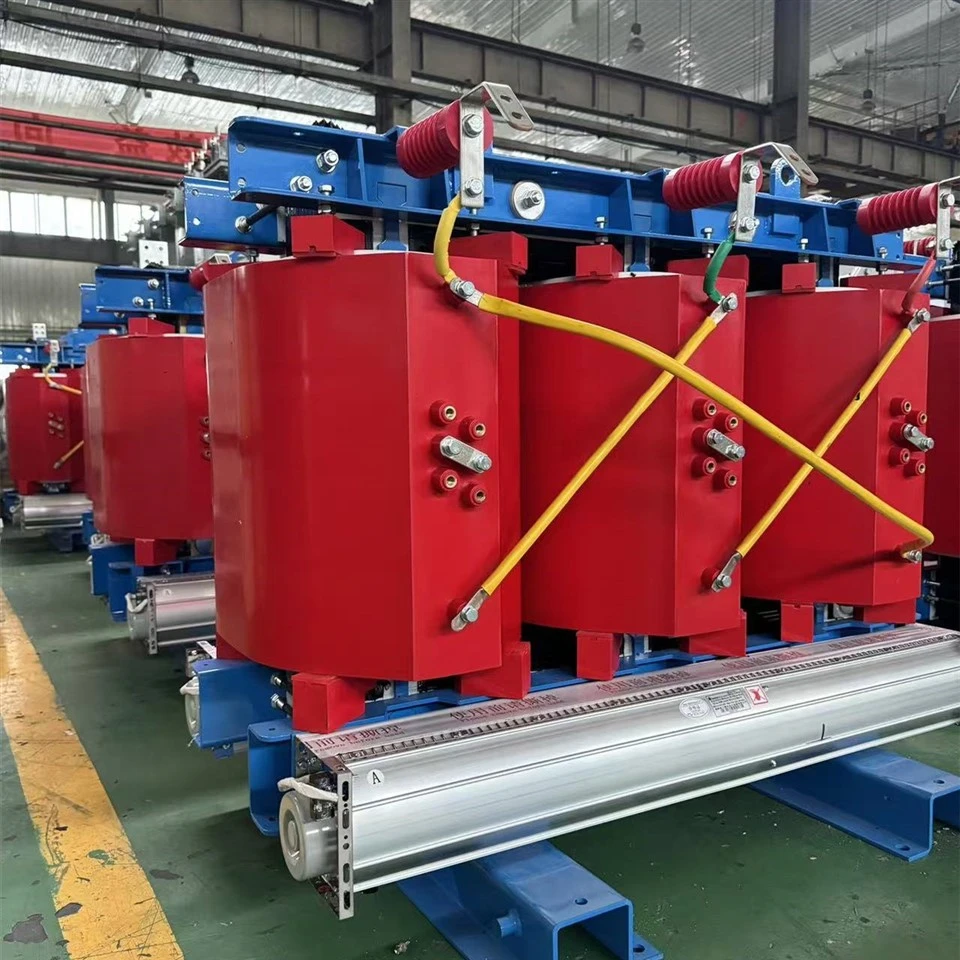

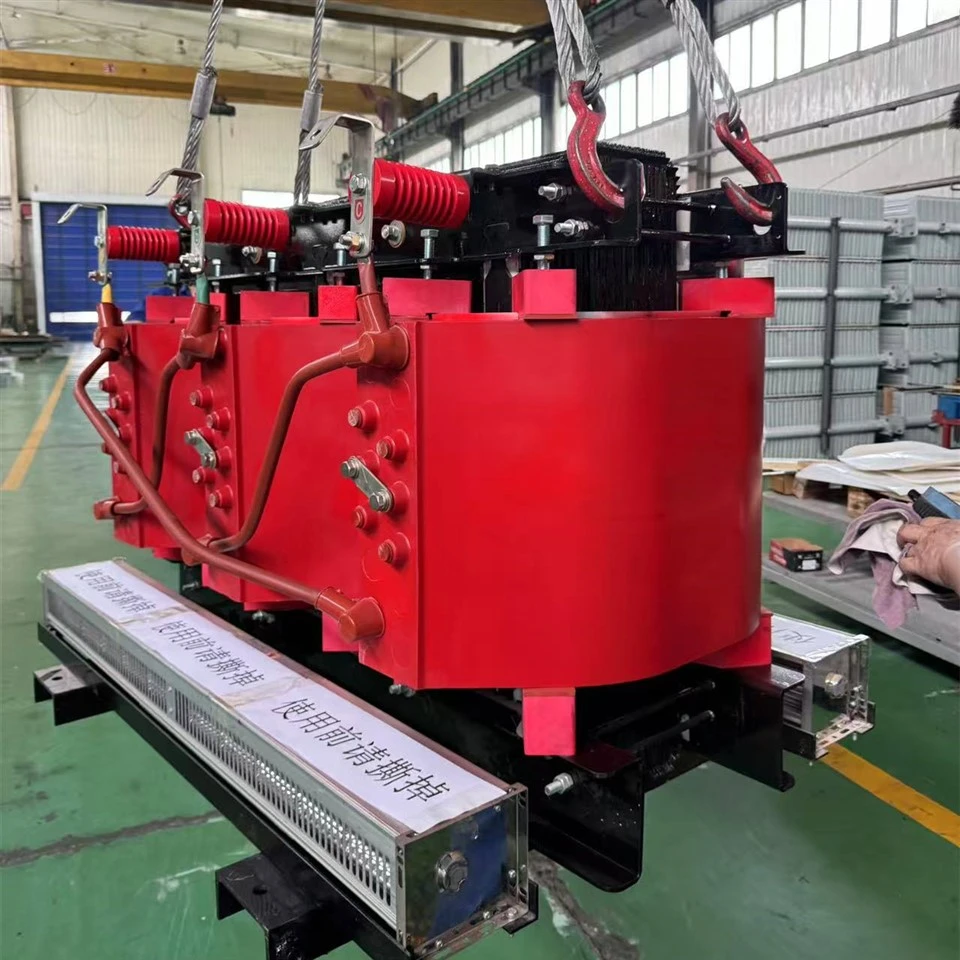

The SC(B) Dry Type Transformer is a high-performance power transformer specifically designed for modern power distribution systems. With the official implementation of China's new energy efficiency standard, GB20052-2020, on June 1, 2021, the permissible loss limits were reduced by 10% to 45% compared to the previous version-surpassing even comparable standards in the EU and the US. The SC(B) Dry Type Transformer is designed in strict compliance with this new standard; specifically, the SCB13 model features an optimized design that delivers comprehensive upgrades in both energy efficiency and reliability.
Product Parameters
|
Item |
Specification |
|
Product Series |
SC(B) Dry Type Transformer |
|
Featured Model |
SCB13 |
|
Rated Capacity |
30-2500 kVA |
|
Connection Group |
Yyn0 or Dyn11 |
|
Voltage Combination |
High Voltage: 10.5kV/6.3kV; Low Voltage: 0.4kV |
|
Tap Range |
±5% or ±2×2.5% |
|
No-load Loss (SCB13-1000) |
1270W |
|
Load Loss (SCB13-1000, 120°C) |
7310W |
|
Insulation Class |
F (120°C) |
|
Standards Compliance |
GB20052-2020, GB20052-2013 |
Product Advantages
Excellent short-circuit withstand capability; low maintenance costs; high operational efficiency; low noise levels; fire-resistant and non-polluting; capable of operating directly under heavy loads.
Low partial discharge levels; excellent thermal stability; long service life.
Automatically monitors winding temperatures, controls fan operation (start/stop), and features integrated alarm and trip functions.
Excellent heat dissipation performance; capable of short-term overload operation under forced air cooling.
Good moisture resistance; suitable for harsh, high-humidity environments.
Compact size and light weight, facilitating easy installation.
Main Applications
- Power generation plants and substations for efficient energy transmission and distribution
- Industrial and mining power distribution systems
- Commercial complexes, high-rise buildings, and public infrastructure
- High-risk environments requiring strict fire and explosion safety standards
- Urban development and renewable energy projects
R&D Capabilities
Technical Heritage
Leveraging the power transmission and distribution technology platform of the former Tianwei Group, we possess decades of experience in transformer design and manufacturing.
01
Industry-Academia Collaboration
We maintain long-term partnerships with North China Electric Power University and Hebei University of Technology, translating research findings directly into enhanced product performance.
02
Core Processes
We have mastered key manufacturing processes-such as vacuum casting and foil winding-and possess core equipment including vacuum casting machines and foil winding machines.
03
R&D Team
A robust technical R&D team covering the entire lifecycle: electromagnetic calculation, structural design, process implementation, and testing & verification.
04
Testing Capabilities
CNAS-accredited testing qualifications; equipped with a full suite of testing equipment, allowing R&D prototypes to undergo complete Type Testing in-house.
05
Specialized Applications
Capable of custom development for specialized application scenarios, including high-altitude environments, high-humidity regions, rail transit systems, and new energy projects.
06
Intelligent Integration
Compatible with intelligent temperature control systems to enable temperature monitoring, fan control, alarm/trip functions, and remote communication capabilities.
07
Our Certificate
FAQ
Q: Is ventilation required for heat dissipation during operation?
A: Yes. This product relies on natural air cooling; therefore, the installation site must provide adequate ventilation conditions.
Q: What precautions should be taken during transportation?
A: Care must be taken to prevent severe mechanical shock and exposure to moisture.
Q: Which standards does the SC(B) Dry-Type Transformer comply with?
A: Depending on customer requirements, it can be designed and manufactured in accordance with international and domestic standards, such as IEC, ANSI, or GB.
